Monument Box Requirements for Plats
Per the Marion County Surveyor, monument boxes are required for all public land corner monuments that fall within the paved surfaces of any newly created right of ways. Unless specifically requested by another jurisdiction, monument boxes will not be required for centerline monuments that fall within the paved surfaces associated with condominium, partition, and subdivision plats. It is requested that 5/8” by 30” iron rods with aluminum caps be used within the paved surfaces of plats.
The purpose for a standardized frame and cover is to facilitate replacement of missing covers in the future.
The following monument boxes (frames) and covers have been approved for use in Marion County, as approved by the County Surveyor:

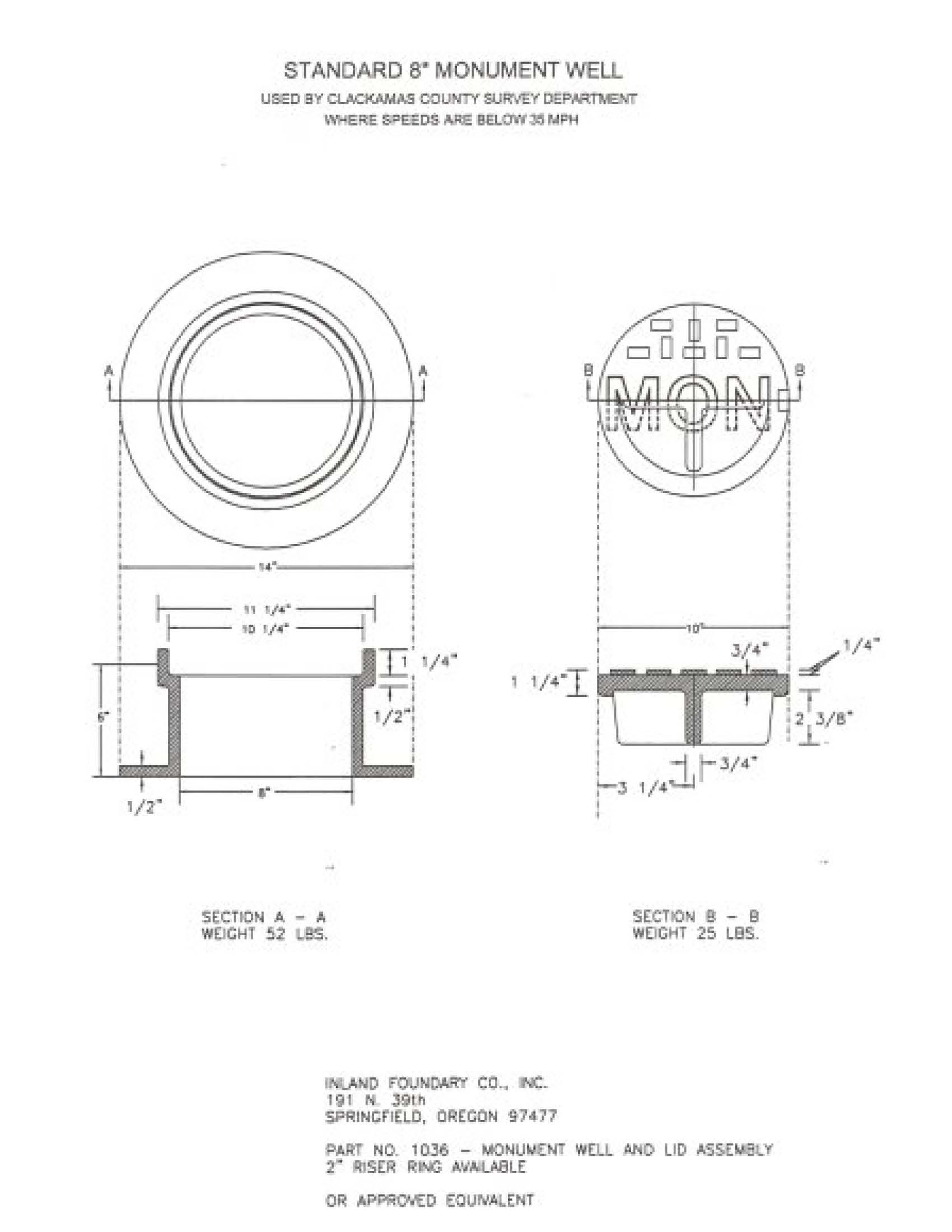

8 - inch Frames and Covers
The 8" boxes are typically acceptable for most local streets (subdivisions) with speeds of less than 35 miles per hour.
Available from:
East Jordan Iron Works, Inc./Inland Foundry Sales, Inc.
191 N. 39th
Springfield, Oregon 97477
541-747-9172
541-747-1283 Fax
- Part number 00368001 for 8" frame and cover
- 2” paving riser rings available
Following are local vendors for the East Jordan Iron Works, Inc. Part # 00368001 Monument Box.
- RINKER MATERIALS CORPORATION / CSR ASSOC.
19595 SW 118th
Tualatin OR
1-503-692-3885
Attn: Geoff Clifford or Derek
- ADVANTAGE PRECAST
1302 Candlewood Rd.
Keizer OR 97303
1-503-390-2048
Attn: Rick Day

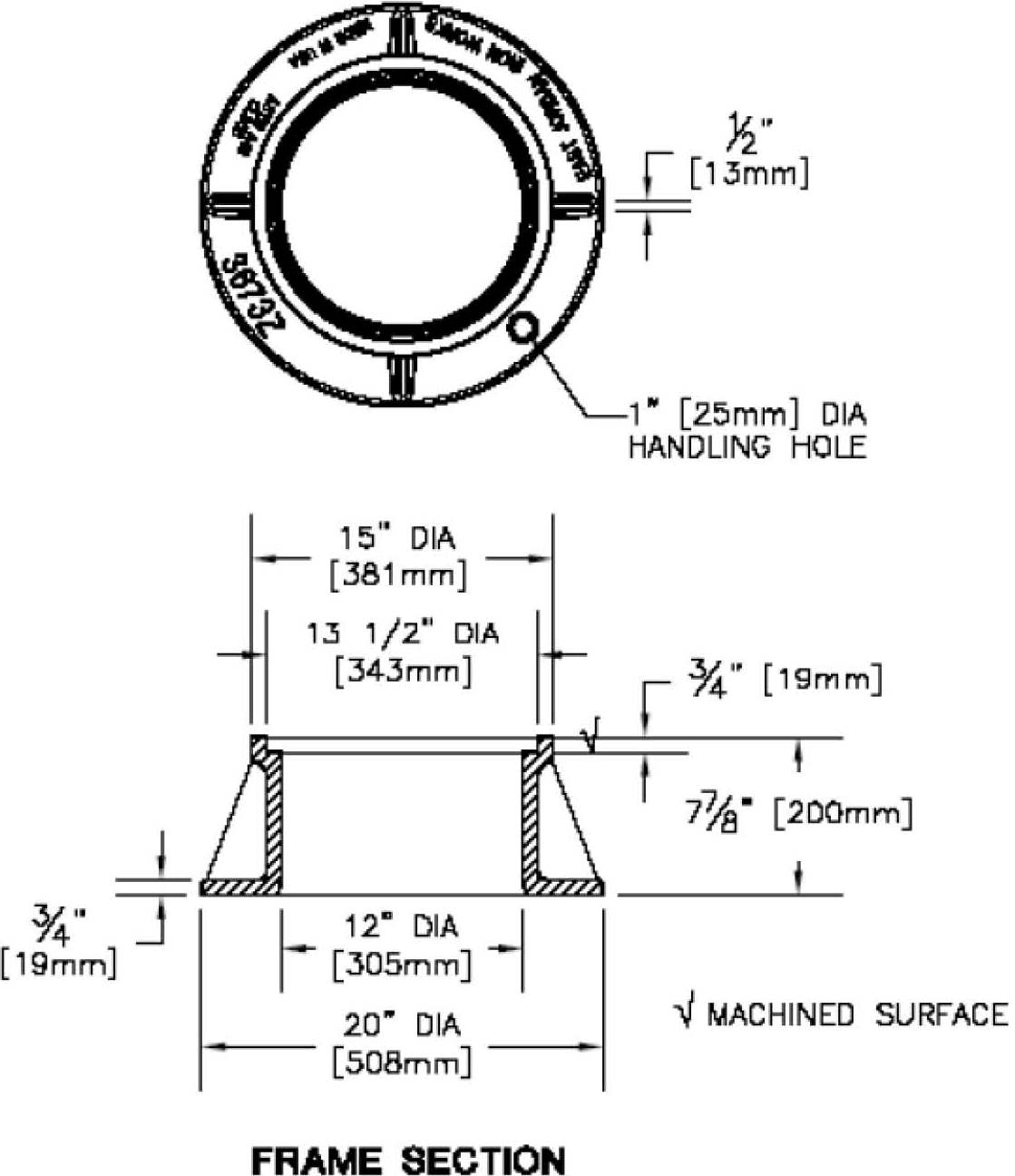

12 - inch Frames and Covers
The 12" boxes are required for streets or County Roads of a higher speed classification (speed equal to or greater than 35 miles per hour). Exceptions will be addressed on an individual basis.
Available from:
East Jordan Iron Works, Inc.
191 N. 39th
Springfield, Oregon 97477
541-747-9172
541-747-1283 Fax
ADVANTAGE PRECAST
1302 Candlewood Rd.
Keizer OR 97303
1-503-390-2048
Attn: Rick Day
Equivalent frames and covers must be approved only by the County Surveyor. See drawing for detail.
LID SECTION
